Reliable Valve Closure Without Automation

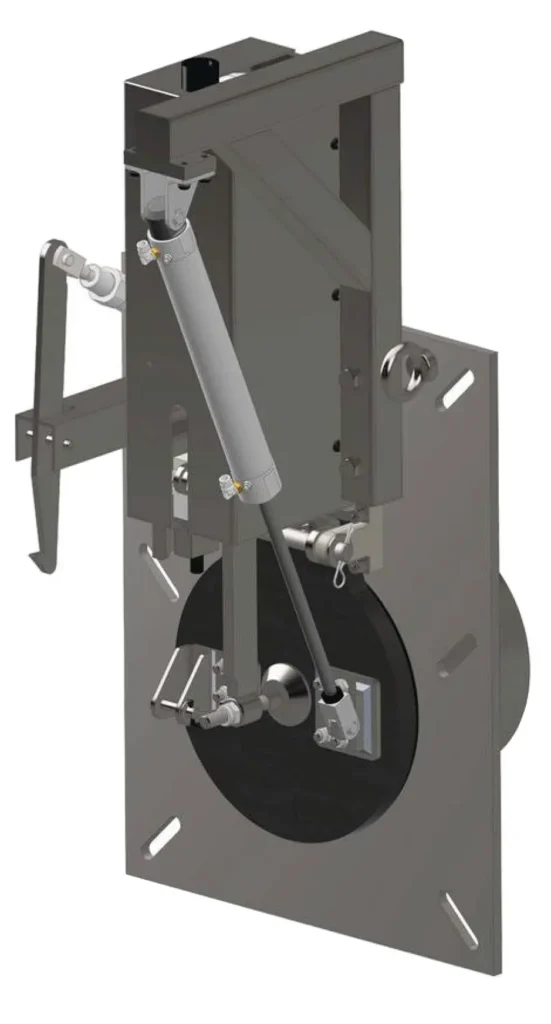

The Manual ToggleBlok® System offers a cost-effective solution for sites that are permanently staffed and equipped to manage environmental response manually. The system provides the same fast-acting valve closure (within 5 seconds) as our automated units, but without the need for control electronics.
This configuration is ideal for:
- Early stages of site development
- Projects with limited automation budgets
- Sites with consistent, trained personnel
- Facilities with an established spill response plan
Manual ToggleBlok® systems can be easily upgraded to full automation later, allowing flexibility as your site evolves. For added peace of mind, all automated valves are also supplied with manual hand pumps as a backup system.
Why Choose a Manual ToggleBlok® System?
- Simple, reliable manual activation
- Fast-acting valve closure within 5 seconds
- Suitable for budget-sensitive or early-phase projects
- Easy to upgrade to an automated system
- Supplied with manual backup for SIL 1 automated systems
System Features
- Manual System for flood prevention and water pollution prevention.

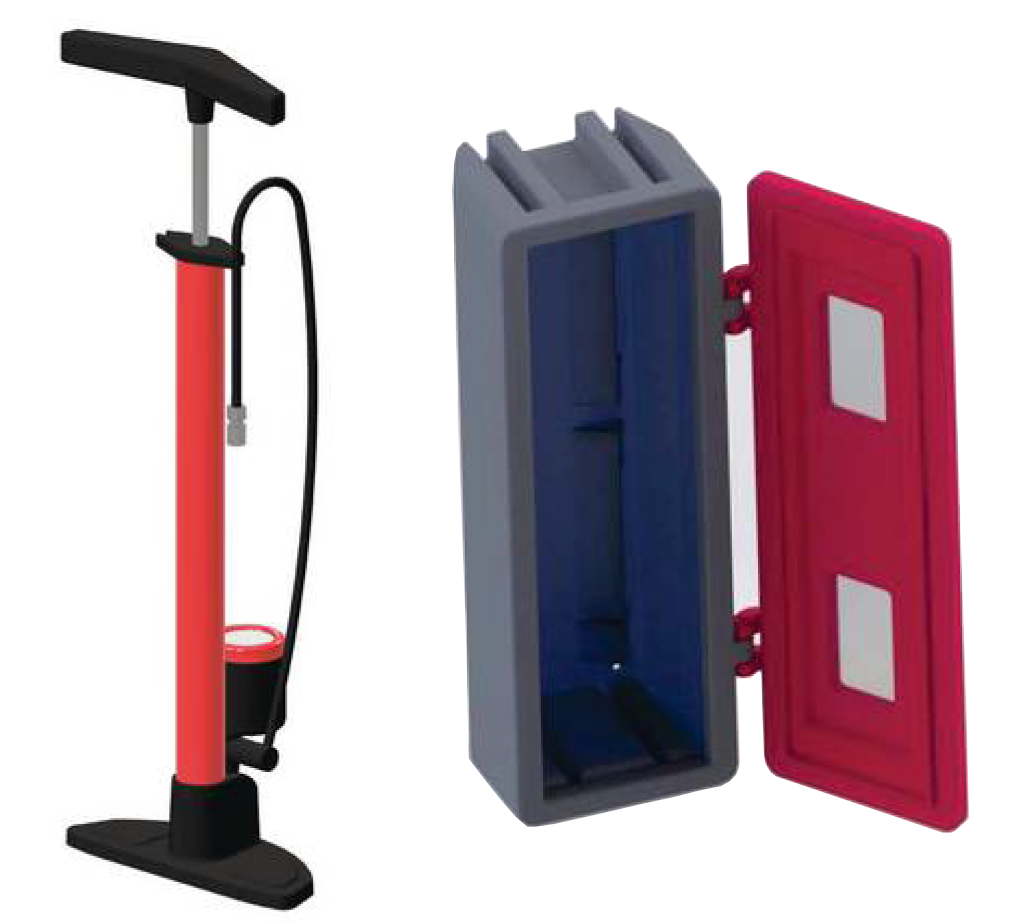

- Operated by hand or foot-pump.
- Closes the drain within 5 seconds.
- Robust drop seal design.
- Pneumatically operated, valve will remain mechanically locked once deployed.
- Simple test procedures.
- No other services required, complete stand alone system.

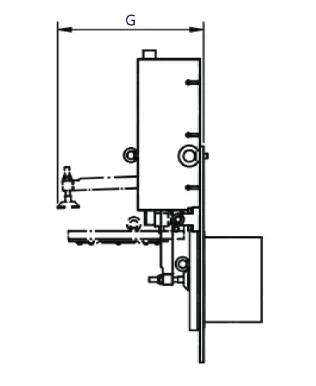

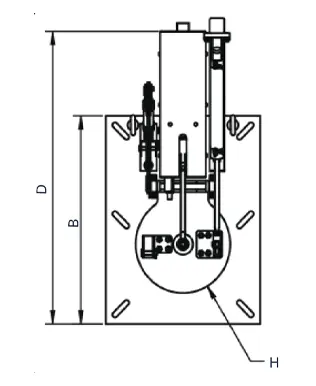

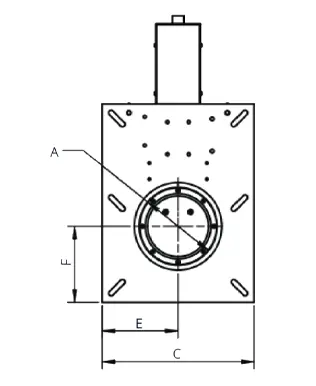

On Seating System
Outlet to Chamber
Dimensions
Valve Size | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | G | H | |
TBV 150 | 150 | 397 | 270 | 640 | 135 | 114.5 | 336 | R90 |
TBV 225 | 225 | 555 | 425 | 780 | 212.5 | 212.5 | 378 | R130 |
TBV 300 | 300 | 630 | 500 | 950 | 250 | 250 | 450 | R167.5 |
TBV 375 | 375 | 782.5 | 600 | 1093 | 300 | 300 | 532 | R212.5 |
TBV 450 | 450 | 850 | 700 | 1245 | 350 | 350 | 613 | R250 |
TBV 500 | 500 | 910 | 760 | 1345 | 380 | 380 | 664 | R280 |
TBV 600 | 600 | 1025 | 900 | 1460 | 450 | 450 | 761 | R325 |
TBV 675 | 675 | 1087.5 | 950 | 1572.5 | 475 | 475 | 836 | R362.5 |
Valve Specification
- Stainless steel with HDPE flap.
- Pneumatically operated, mechanically locks when closed.
- Light weight modular design.
- Lift eyes on larger valves to assist lowering into chamber.
- Manual open and close

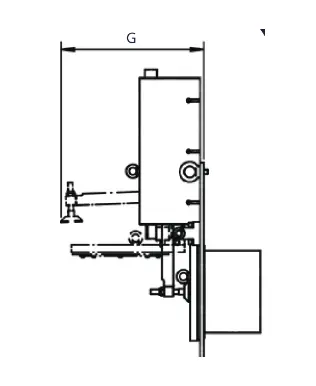

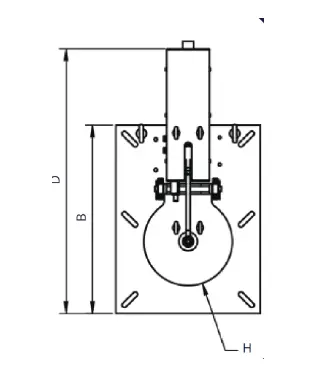

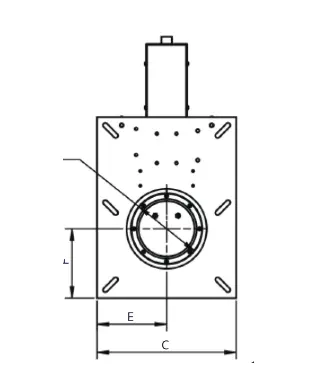

Off seating system
On headwall or inlet to chamber
Dimensions
Valve Size | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | G | H | |
TBV 150 | 150 | 397 | 270 | 640 | 135 | 114.5 | 336 | R90 |
TBV 225 | 225 | 555 | 425 | 780 | 212.5 | 212.5 | 378 | R130 |
TBV 300 | 300 | 630 | 500 | 950 | 250 | 250 | 450 | R167.5 |
TBV 375 | 375 | 782.5 | 600 | 1093 | 300 | 300 | 532 | R212.5 |
Valve Specification
- Stainless steel with HDPE flap.
- Pneumatically operated, mechanically locks when closed.
- Light weight modular design.
- Lift eyes on larger valves to assist lowering into chamber.
- Manual open and close
