Intelligent Valve Control Without the Power Dependency
The ToggleBlok® Control System provides reliable pneumatic valve activation without the need for mains services or complex infrastructure. Housed in a compact, standalone control unit, the system can be wall, post or floor mounted (with a concrete pad) within 20 metres of the connected valve.
The control box is battery-powered with optional solar or trickle charging, providing uninterrupted operation for 5 – 7 days even without power. This removes the need for costly UPS systems (typically required with penstock valves).
The ToggleBlok control system supports direct operation or integration with a range of monitoring and alert systems, including:
- Fire alarms
- Water quality monitoring (pH, turbidity, oil)
- SMS activation
- Remote call points (RACP)
- The unit also provides live status feedback, confirming valve position (open/closed) and fault conditions if activation fails.
Why Choose the ToggleBlok® Control System?
- Pneumatic activation for reliability and speed
- Operates without mains power or UPS
- Flexible control options: wired, wireless or SMS
- Live valve status reporting
- Easy installation and maintenance
Control Box

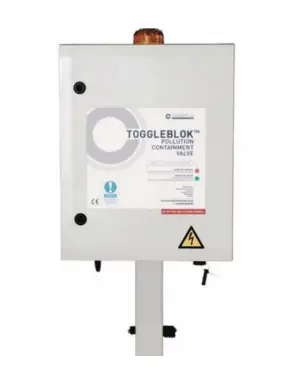

Wall mounted control panel enclosure
Control panel front

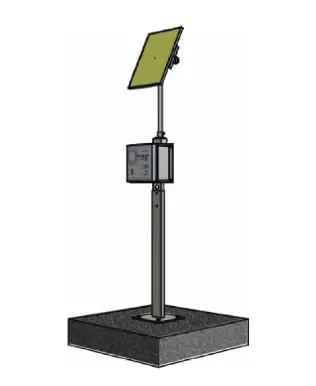

Floor Mounted Stand with Solar PV Panel

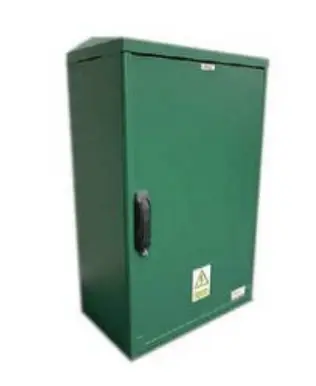

GRP Roadside Enclosure

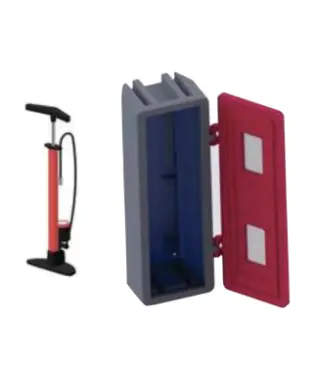

Manual Override Kit
Control Box Specification
- IP66 Enclosure.
- Local, Remote Call point or SMS activation / Auxillary.
- Wall or Stand Mounted.
- 12v Battery Powered.
- Mains or Solar charging.
- To be positioned no more than 30 m from valve (greater distance on application).
- Manual close/open buttons with 5 second delay to prevent accidental activation.
- Activation Audible Alarm.
- Open and Close LED Indicators.
- LED and Audible Failure Indicator.
- SMS command and activation alerts enabled based on mobile signal available.
- Suitable for auxiliary activation / alarm connection Eg. monitoring equipment/ Fire alarms. Volt free. No contact required.
- Manual override kit available.
- BMS Interface.
- Also available in GRP floor mounted enclosure.
